Features:
Build Volume(W*D*H):300*300*350mm
Max Speed:500mm/s
Max Acceleration:15000mm/s
Extruder:Planetary Double Gear, Reduction Ratio 1:7.5
Max Hot End Temperature:≤300℃(572℉)
Max Build Plate Temperature:100℃(212℉)
Heating Method:Ceramic Heating Plate
Nozzle:0.4mm(Included), 0.6mm and 0.8mm Replaceable
Build Plate:Double-sided Textured PEI Plate
Control System:Klipper (3308 Chip)
Storage:RAM: 512MB, Flash: 8GB (eMMC)
Slicing Software:Standard: Orcaslicer; Compatible with: Prusaslicer, Cura
Communication:WiFi (2.4 G), LAN, U Disk
Touch Screen:4.3-inch Capacitive Screen
Supported Filament:PLA, PETG, TPU, PVA
Camera:Default: 640*480P, Max: 1080*720P
Printer Size:510*575*710mm (Includes Screen and Filament Holder)
Power:500W/24V @100-240 VAC, 50/60Hz
Filament Run Out Sensor:Yes
Power Loss Recovery:None
OTA:Yes
Dual Axis Core Metal Bearings And Rails
The X and Y axes are equipped with Sovol’s new dual axis core metal bearings and all-metal rail system, significantly improving the reliability and lifespan of the 3D printer. Compared to traditional V-shaped POM wheels, this not only enhances structural strength and extends lifespan, but also reduces noise during printing, making it smoother and more efficient.
Full-auto Leveling Bed
Auto-leveling: The sensor automatically measures Z-axis offsets and adjusts the Z-offset to ensure precise leveling.
Adaptive Probing: Adjusts probing area based on the model’s footprint, reducing preparation time.
Dual Z-axis Motors: Ensures efficient and stable leveling.
The Secret to More Accurate Printing
Open Source
You can customize both hardware and software to meet specific needs, enabling tailored solutions and innovations. This flexibility allows you to iterate, upgrade the 3D printer anytime, and achieve creative breakthroughs.
Printing Speed up to 500mm/s
Harnessing advanced technology to deliver rapid printing without compromising on intricate details, resulting in impeccable, high-quality print models. Fast print enhanced overall production efficiency greatly.
Stable Z-axis
The Z-axis is reinforced with diagonal rod supports, forming a sturdy triangular structure to minimize wobbling during high-speed printing and enhance printing precision.
Built-in Camera
Defect Detection (with Obico App): The system can automatically stop printing when a “spaghetti monster” is detected, based on real-time camera monitoring.
Remote Control: Monitor the printing status in real-time via Obico and control the printer remotely.
Timelapse Photography: Capture stunning printing processes and create condensed videos of the print, ready to share on your social media.

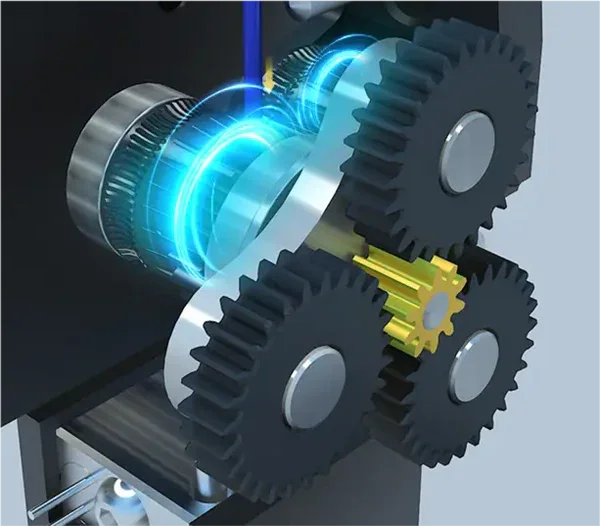

Advanced Planetary Dual Gear Extruder
Equipped with a planetary dual gear extruder featuring a 1:7.5 gear ratio, ensuring lightweight construction and powerful, consistent output. With a 300℃ high-temperature nozzle, the SV06 Plus ACE supports a wide range of materials: PETG, TPU, PLA, ABS, etc.
Powerful 4020 Fan for Quick Cooling
The robust 4020 high-speed ball bearing fan generates strong airflow for the rapid cooling of printing materials. This effective cooling solution minimizes warping and enhances layer adhesion, ensuring high-quality prints with precision and consistency.
4.3-inch Touch Screen
Everything at Your Fingertips: Complete all settings with a simple tap on the screen, including auto-leveling the bed, previewing prints, and one-click printing.
